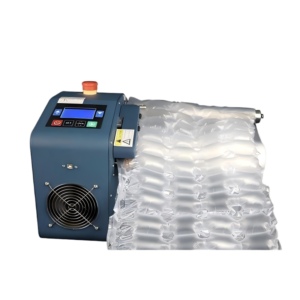

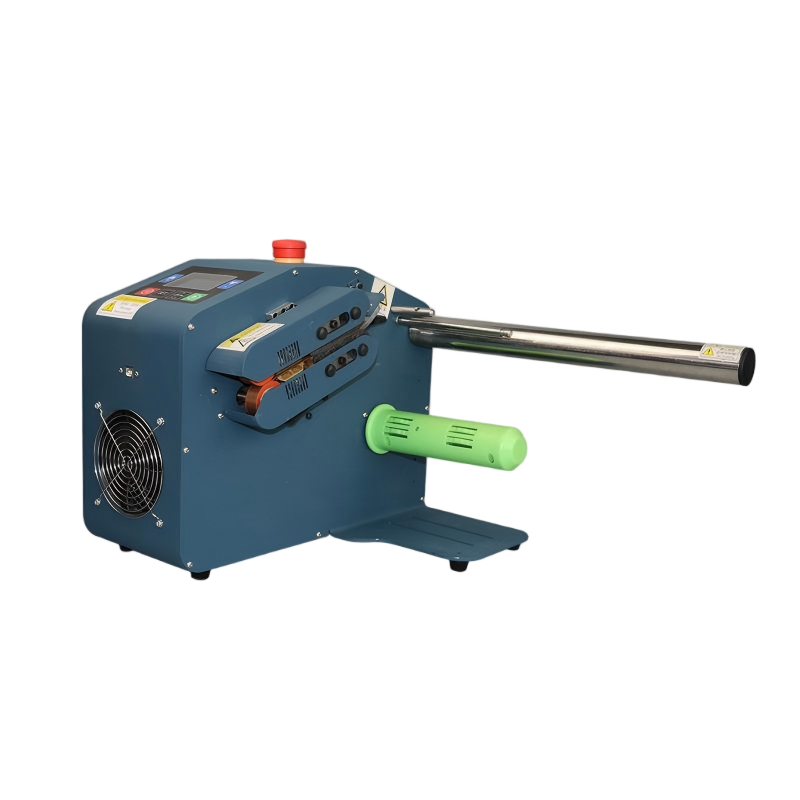

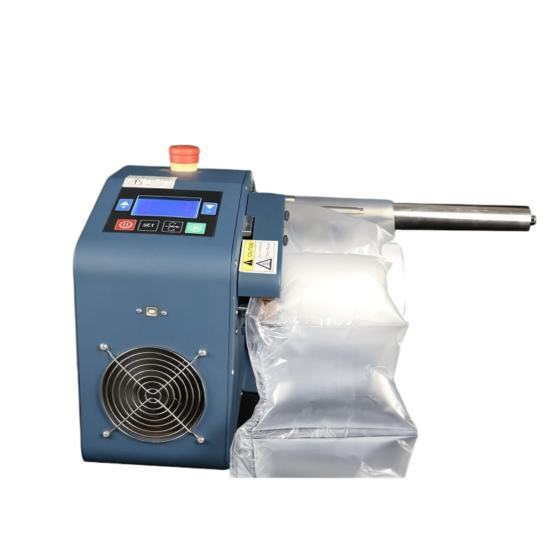

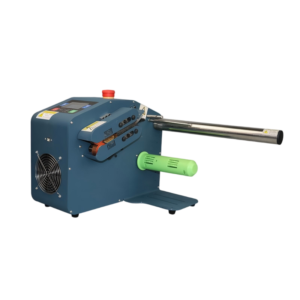

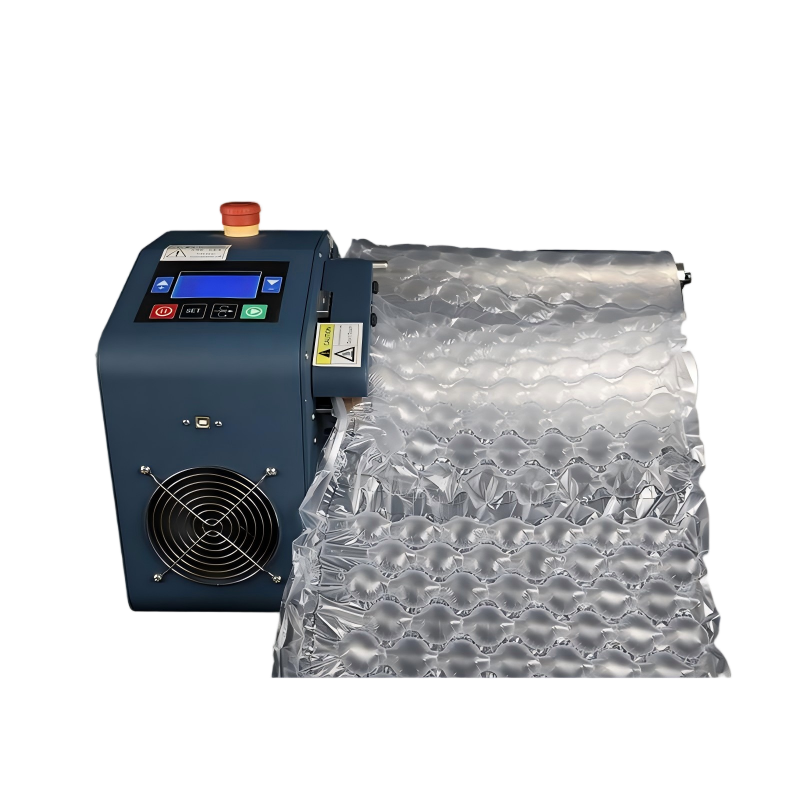

Heavy-duty air cushion machine

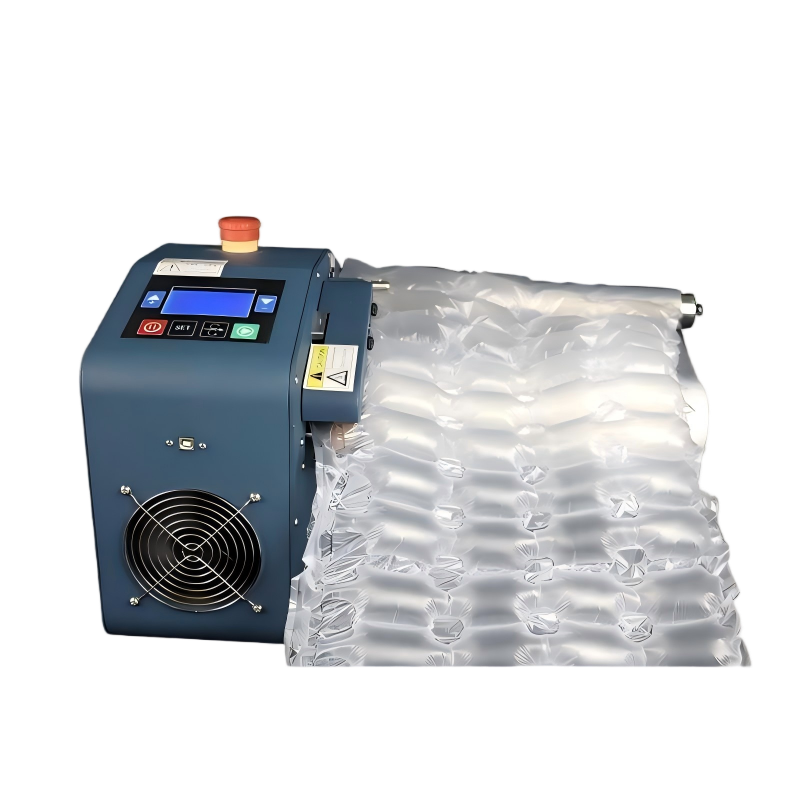

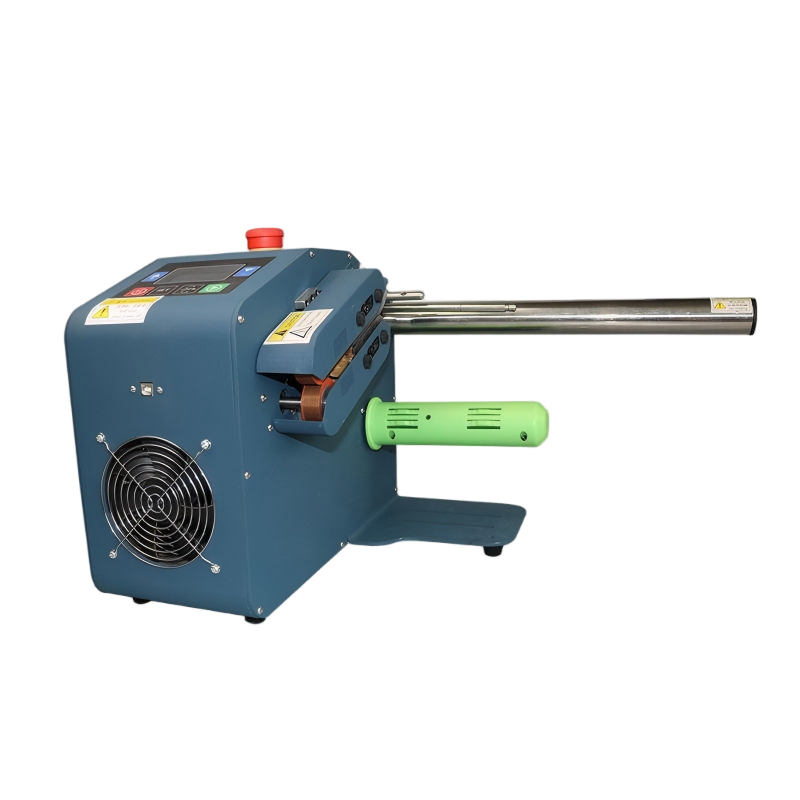

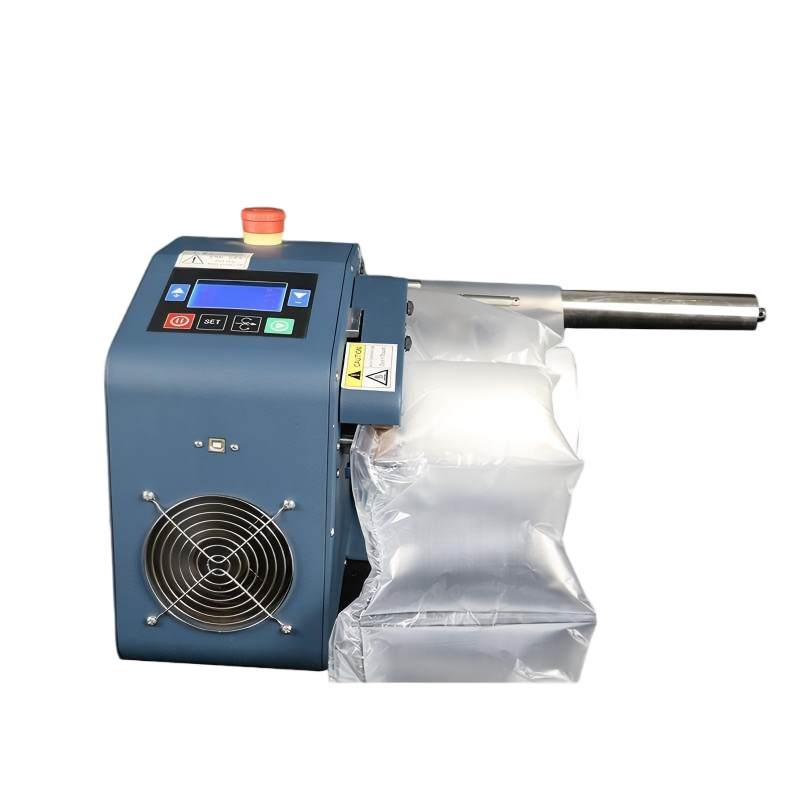

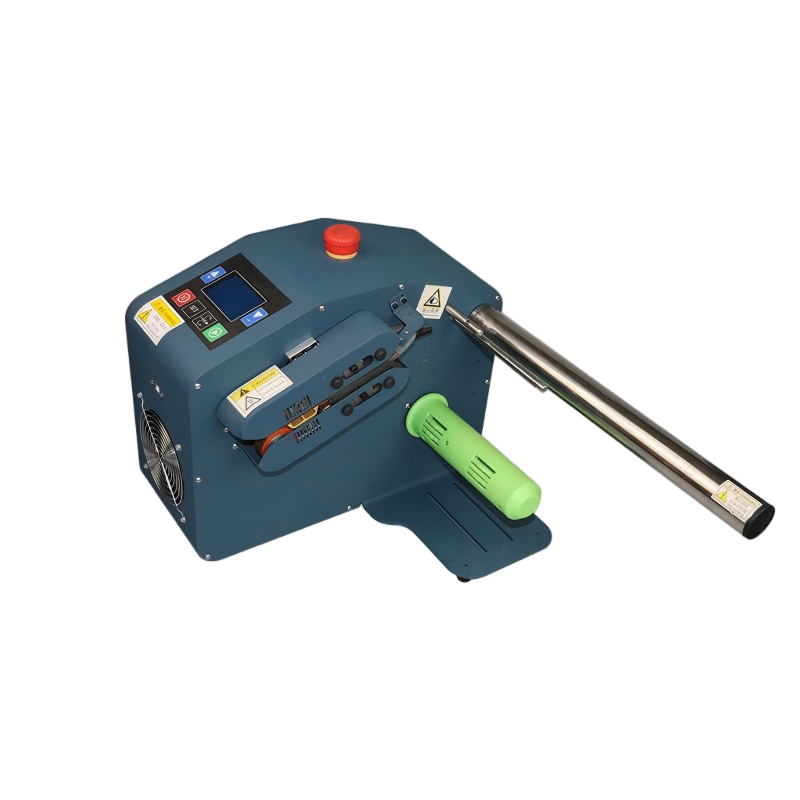

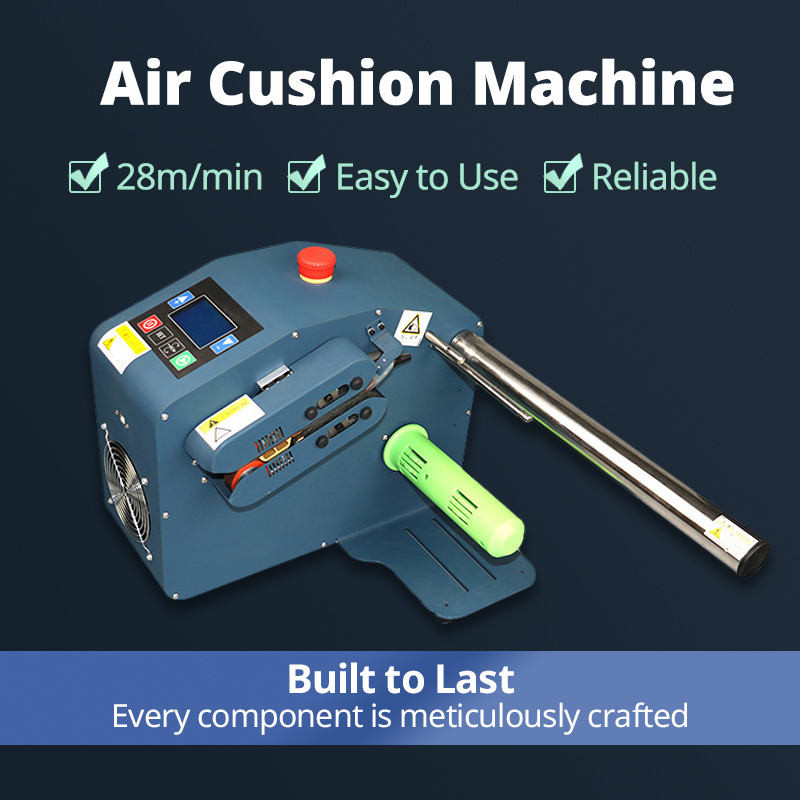

Heavy-duty Air Cushion Machine, Automatic Air Pillow Gourd Film Inflator for Void‑Fill Protective Packaging
Product Overview
The Heavy-duty Air Cushion Machine is newly‑developed automatic inflation & sealing equipment specially designed for gourd bubble cushion film. Equipped with imported wide‑voltage power supply and brushless motor, it delivers longer continuous running time, faster production speed and stable firm heat‑sealing performance. Compact‑sized and lightweight, this machine is an ideal protective‑packaging solution for small‑scale factories, warehouses, e‑commerce shops and logistics packing workshops. It can produce air pillows for void filling, shock absorption and goods protection during shipment. CE certified for global market application.
Key Features

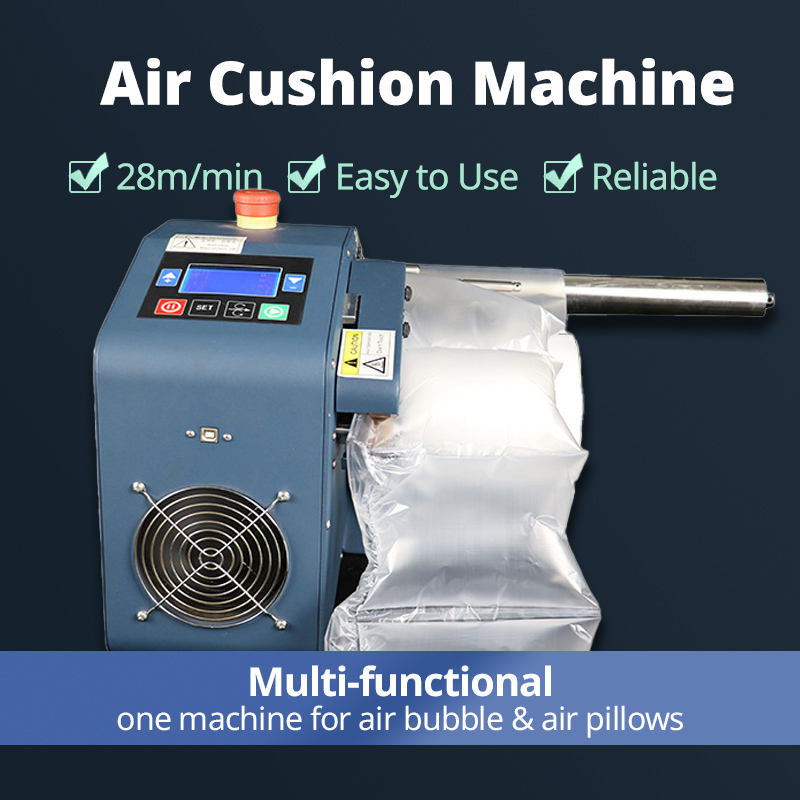

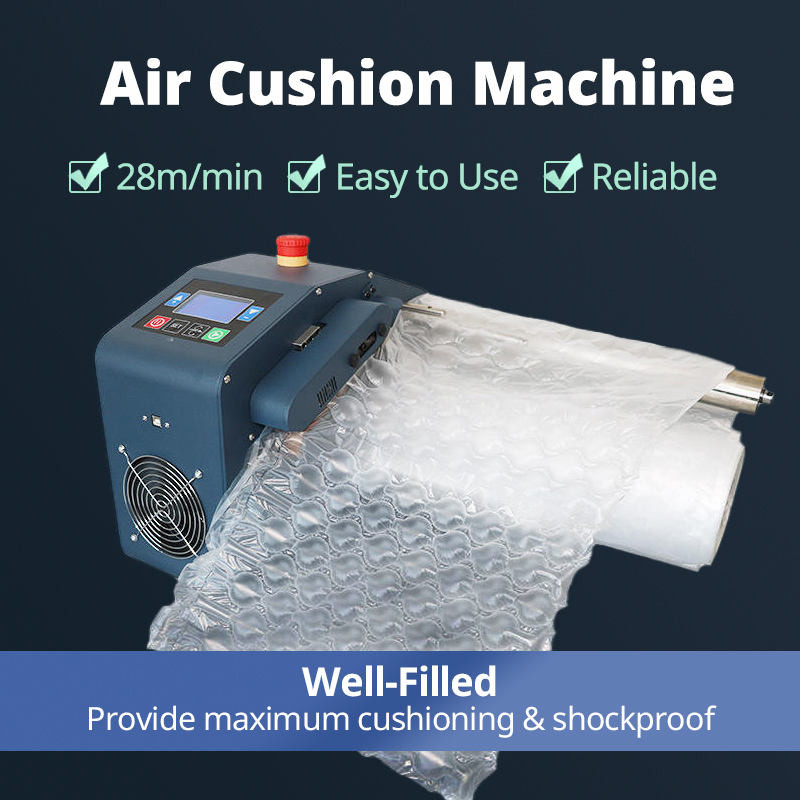

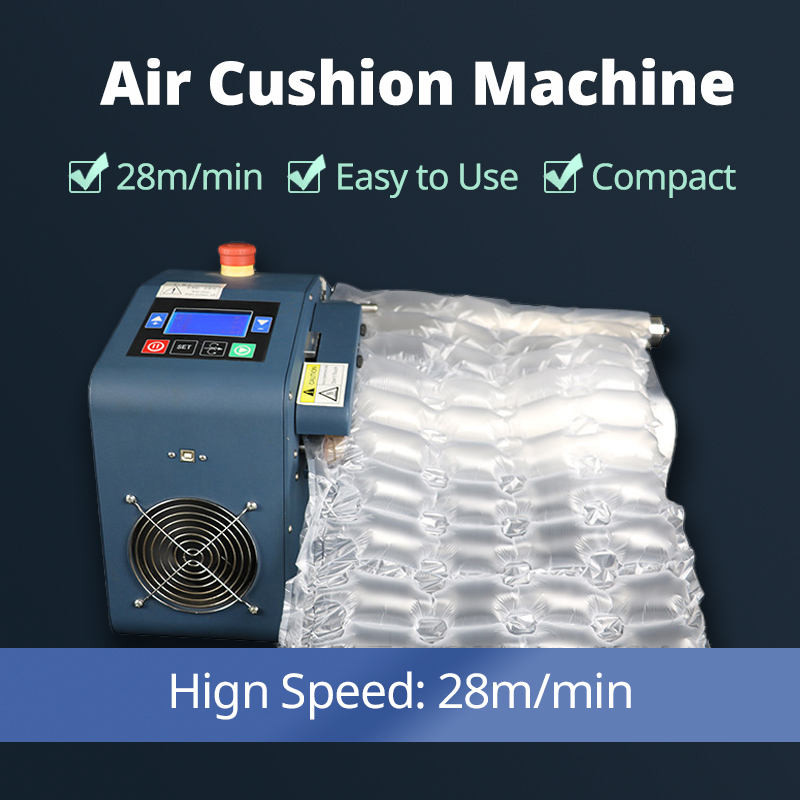

- Brushless Motor & High‑speed Output Adopts premium brushless motor, supports long‑time non‑stop operation. Max working speed reaches 28 m/min, maximum air output up to 700L/min, greatly improves packaging efficiency.
- Adjustable Heat‑sealing Performance Heat‑seal temperature adjustable from 90‑150℃. Freely match speed and air volume according to different cushion film materials to get perfect sealing and inflation effect.
- Compact & Lightweight Body Small footprint design. Machine dimension: 400×165×310 mm, net weight only 6.4 kg, easy to place and move for limited workspace.
- Intuitive Control Panel & Safety Protection LCD operation panel with plus/minus, start, pause, setting buttons. Built‑in emergency‑stop switch. CE certification, over‑current fault alarm system for motor, heating strip and fan.
- Easy Maintenance & Parts Replacement User‑friendly structure for quick replacement of cutting blade, high‑temperature belt and high‑temperature adhesive tape. Weekly simple dust‑cleaning keeps stable long‑term operation.

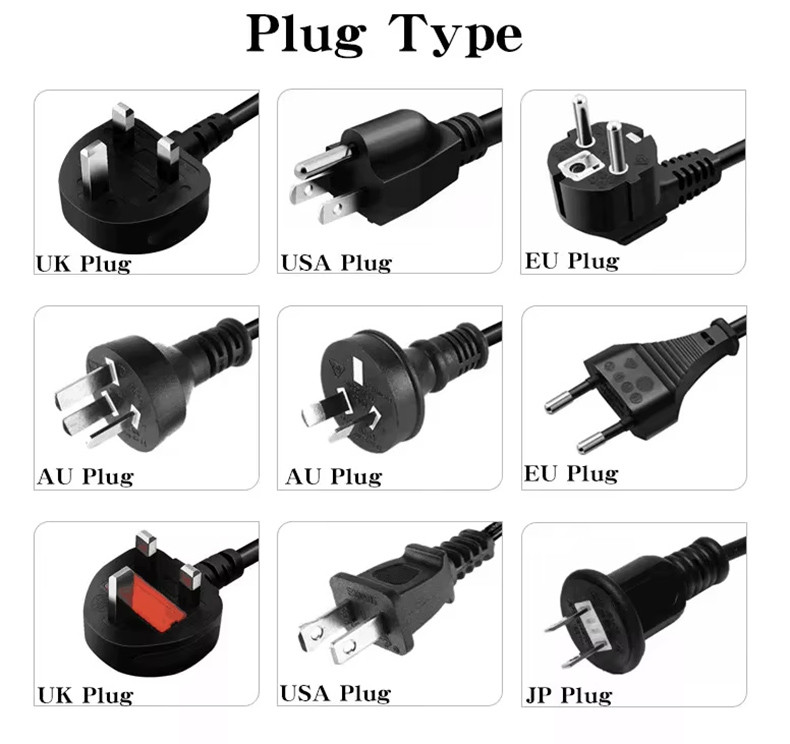

- Wide Voltage Compatibility Default AC220V, 110V optional, 50/60Hz, fits different country power grids. Requires reliable grounding for safe operation.
Technical Specifications（Extracted from Official Operation Manual）
| Item | Specification |
|---|---|
| Model | Heavy-duty Air Cushion Machine |
| Input Voltage | Default AC220V; AC110V adjustable, 50/60Hz |
| Rated Power | 450W |
| Max Speed | 28 m/min |
| Max Air Volume | 700 L/min |
| Heat‑seal Temperature Range | 90‑150 ℃ |
| Machine Dimension(L×W×H) | 400 × 165 × 310 mm |
| Package Dimension(L×W×H) | 490 × 390 × 430 mm |
| Net Weight | 18 KG |
| Gross Weight | 20 KG |
| Shock‑proof Class | Class I anti‑electric shock |
| Certification | CE |
| Max Loading Weight of Film Roll | ≤7 KG |
| Operating Ambient Temp | 16‑43℃ |
| Storage Ambient Temp | 0‑43℃ |
| MOQ | 1 Set |
| Custom Service | Support power‑voltage option |
Fault Code Reference (For After‑sales Troubleshooting)
| Code | Fault Description | Handling Suggestion |
|---|---|---|
| ERR01 | Temperature sensor abnormal | Restart machine; If alarm repeats, replace temperature sensor |
| ERR02 | Heating strip over‑current | Check & replace damaged high‑temperature belt / heating strip |
| ERR03 | Heating wire disconnected | Check heating strip and connecting wires; replace control panel if needed |
| ERR04 | Motor over‑current | Check material jamming; replace motor if hardware damaged |
| ERR05 | Material shortage / Fan over‑current / Fan failure | Contact authorized dealer or professional technician |
Application Scenarios
Perfect for void‑fill and shock‑proof protection for electronics, glassware, cosmetics, handicrafts and daily‑use goods during transportation. Widely used for e‑commerce warehouses, retail shops, small factories and logistics distribution centers.
Notes & Reminders
- Recommended to use our original gourd cushion film. Using third‑party film may cause bag breakage, poor sealing or machine damage, and will void relevant warranty service.
- Do NOT operate without loading film roll. Keep fingers, hair and clothing away from rotating rollers to avoid entanglement injury. Heating roller runs at high temperature, watch out for scald.
- Reliable grounding is mandatory for power supply. Do not use in humid environment.
- Inflated air bags are only for packaging use. Do NOT use as flotation device, pillow or children’s toy.
Package Includes
1 × H035 Main Machine 1 × Power Cord Spare cutting blade, high‑temperature belt, high‑temperature adhesive tape 1 × Film shaft accessories 1 × English‑Chinese Operation Manual
