Heavy-duty air cushion machine

Heavy-duty Air Cushion Machine, Automatic Air Pillow Gourd Film Inflator for Void‑Fill Protective Packaging

제품 개요

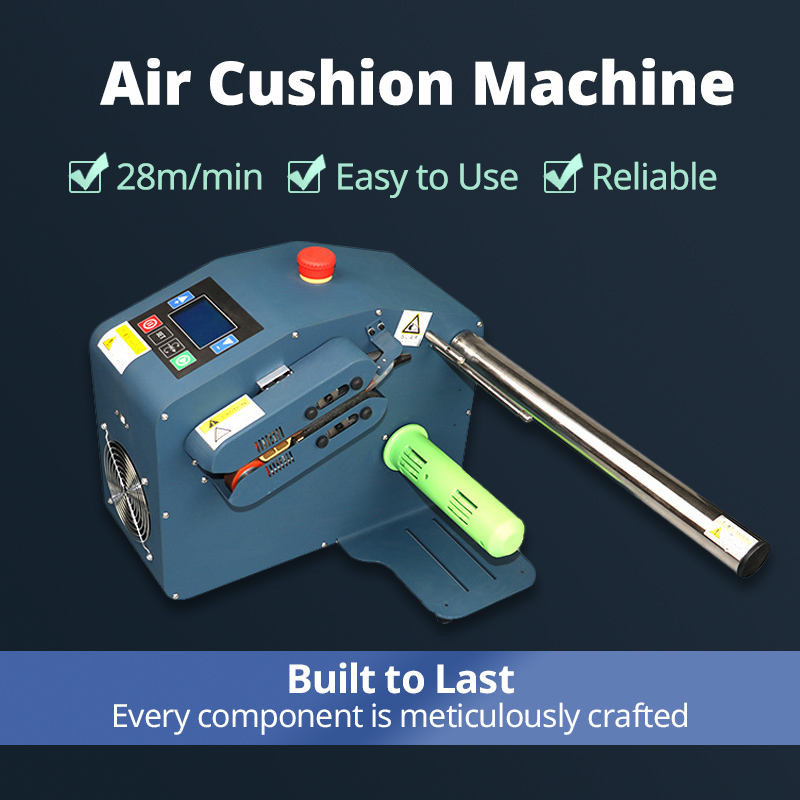

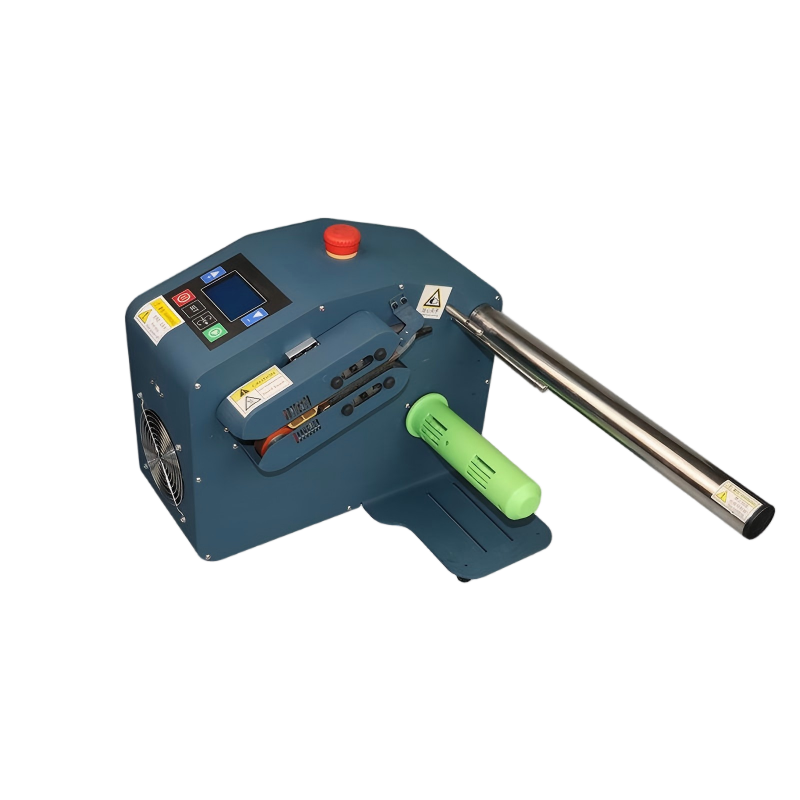

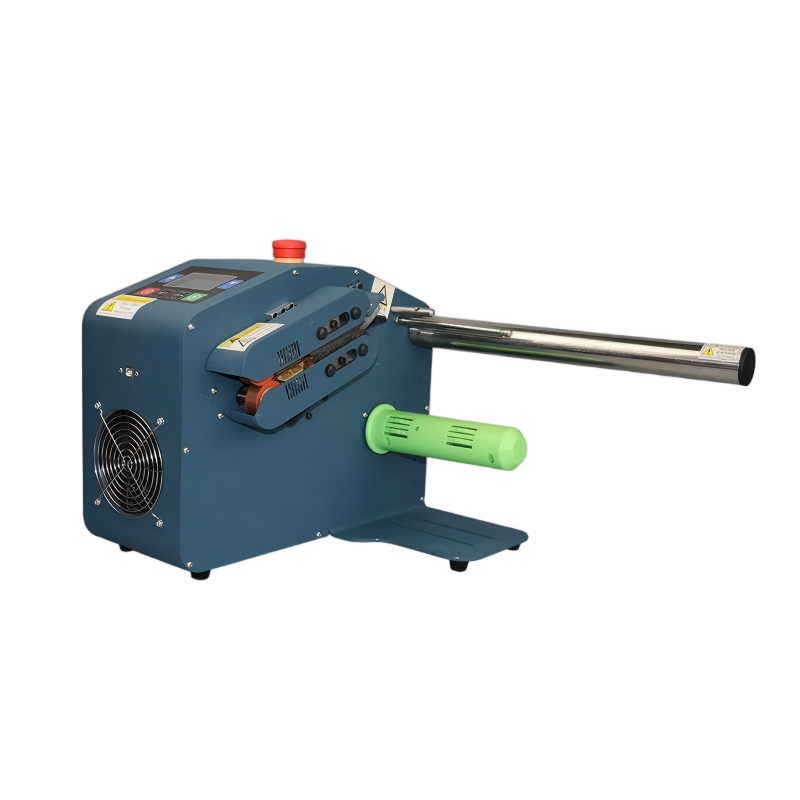

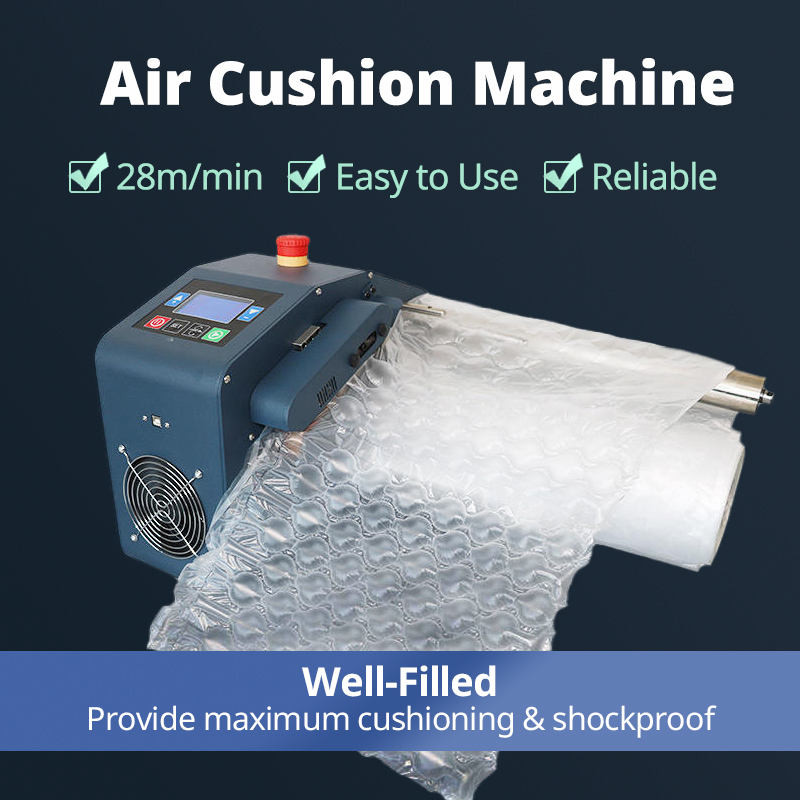

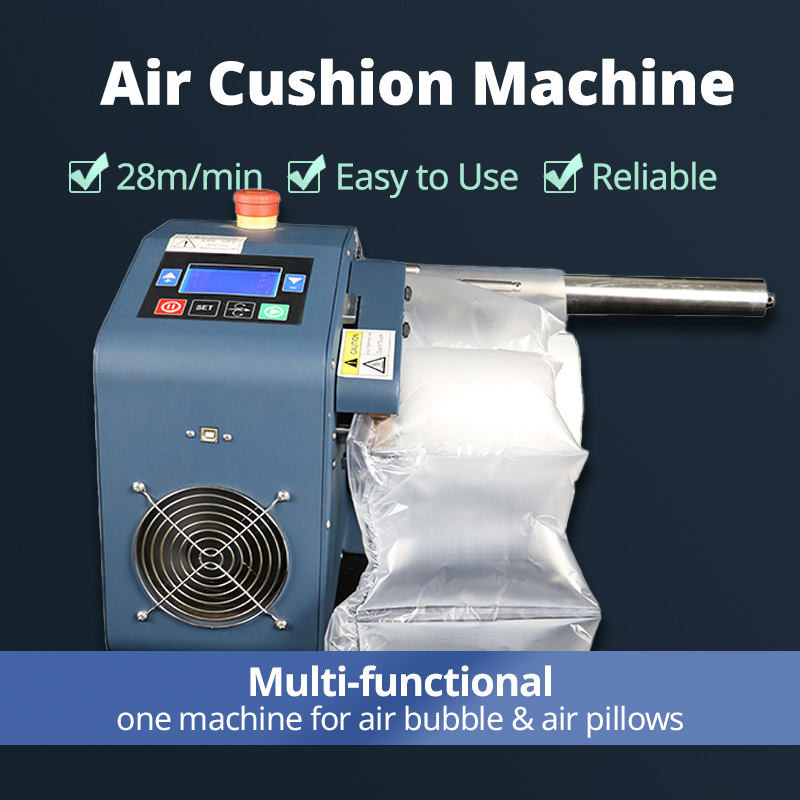

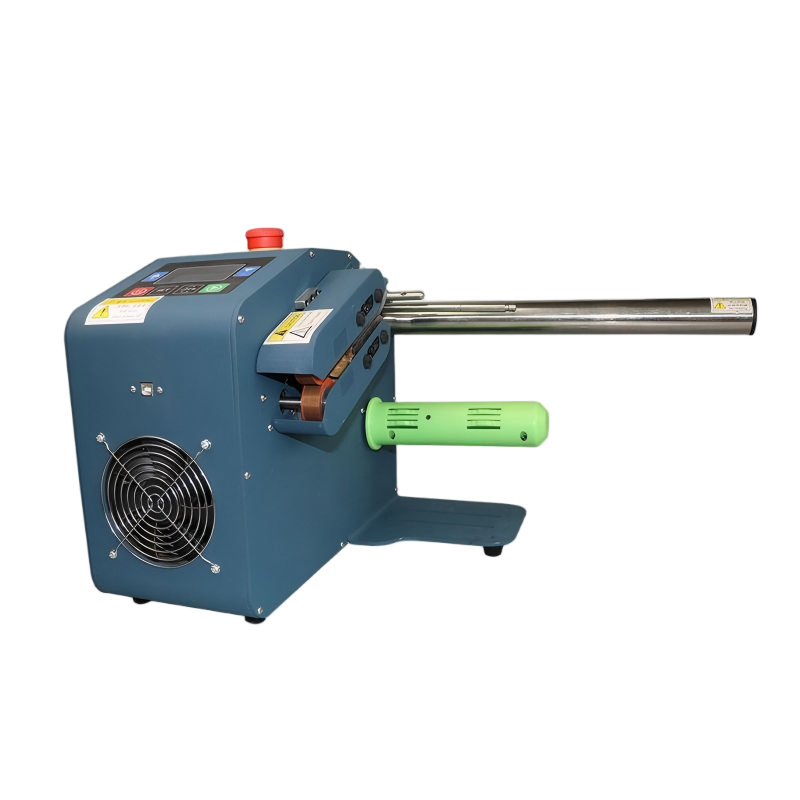

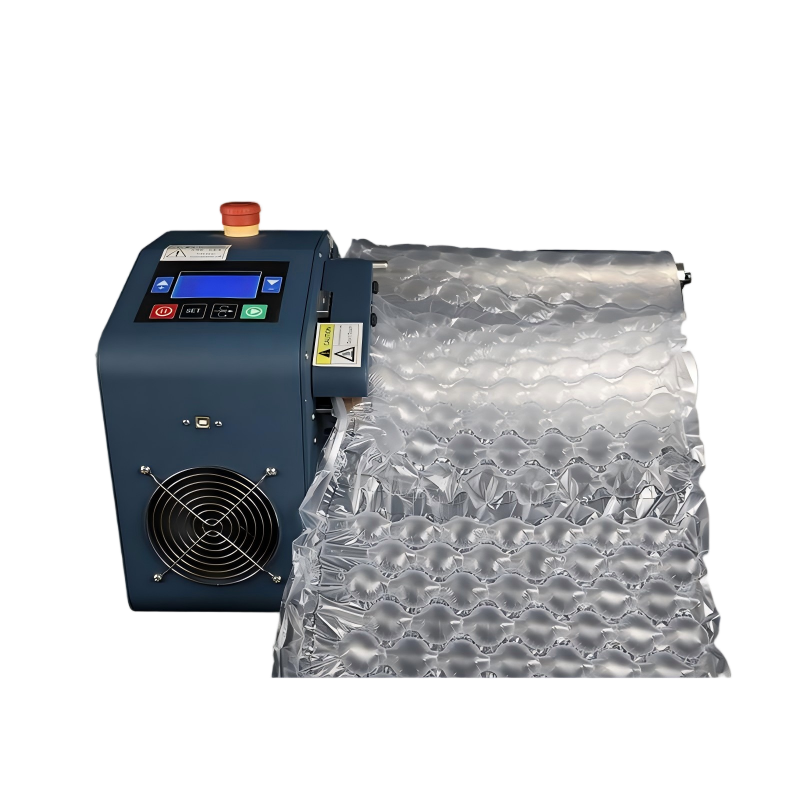

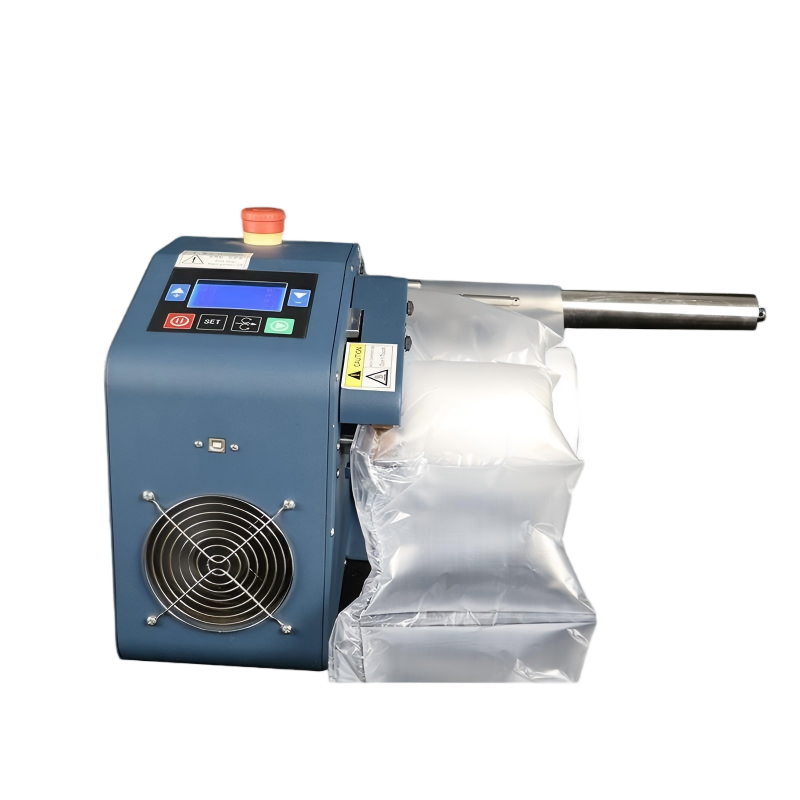

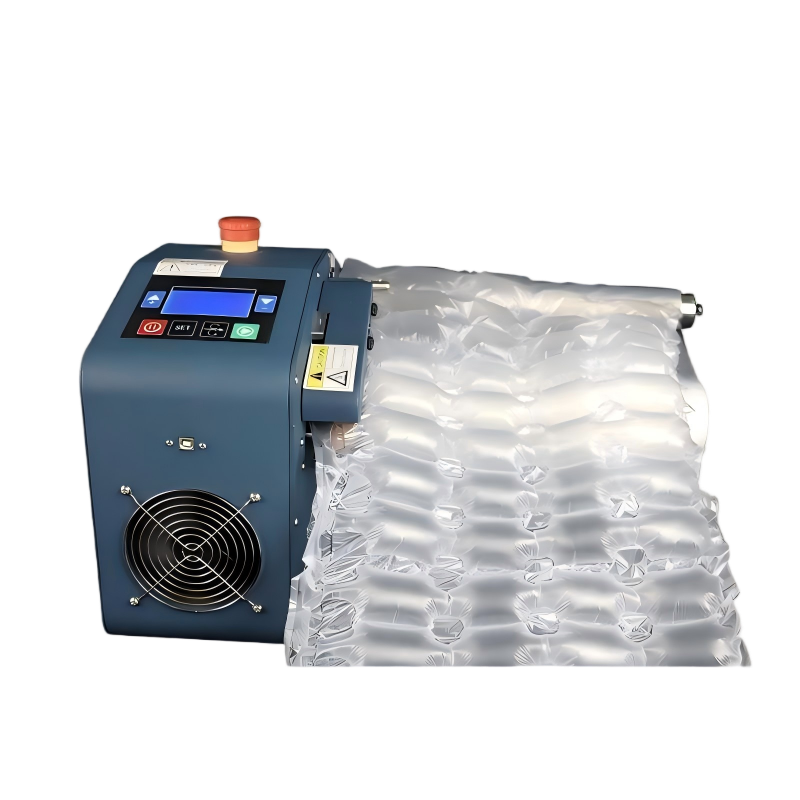

The Heavy-duty Air Cushion Machine is newly‑developed automatic inflation & sealing equipment specially designed for gourd bubble cushion film. Equipped with imported wide‑voltage power supply and brushless motor, it delivers longer continuous running time, faster production speed and stable firm heat‑sealing performance. Compact‑sized and lightweight, this machine is an ideal protective‑packaging solution for small‑scale factories, warehouses, e‑commerce shops and logistics packing workshops. It can produce air pillows for void filling, shock absorption and goods protection during shipment. CE certified for global market application.

Key Features

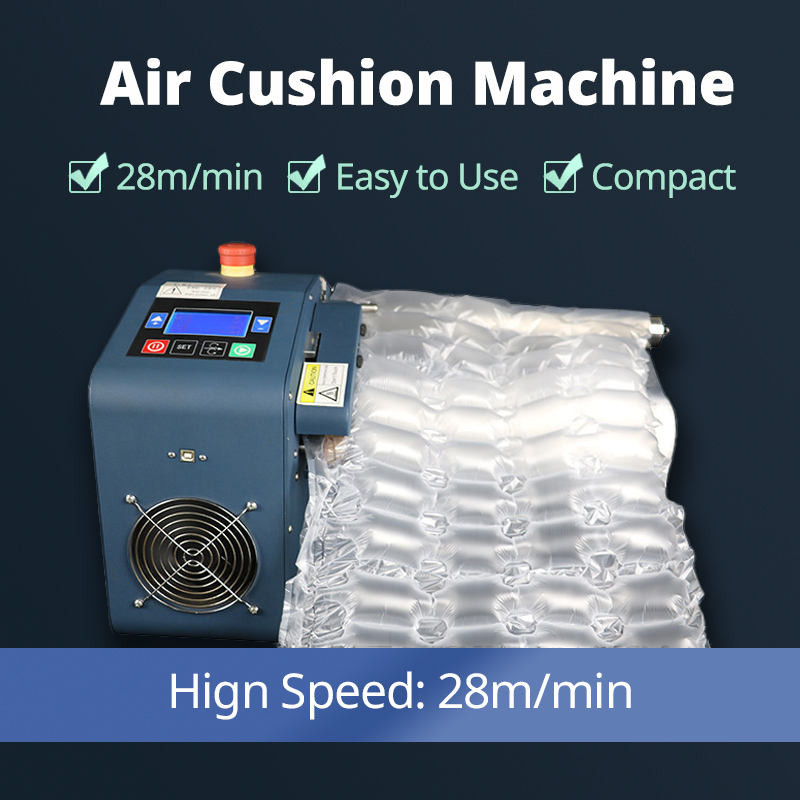

Brushless Motor & High‑speed Output Adopts premium brushless motor, supports long‑time non‑stop operation. Max working speed reaches 28 m/min, maximum air output up to 700L/min, greatly improves packaging efficiency.
Adjustable Heat‑sealing Performance Heat‑seal temperature adjustable from 90‑150℃. Freely match speed and air volume according to different cushion film materials to get perfect sealing and inflation effect.
Compact & Lightweight Body Small footprint design. Machine dimension: 400×165×310 mm, net weight only 6.4 kg, easy to place and move for limited workspace.
Intuitive Control Panel & Safety Protection LCD operation panel with plus/minus, start, pause, setting buttons. Built‑in emergency‑stop switch. CE certification, over‑current fault alarm system for motor, heating strip and fan.
Easy Maintenance & Parts Replacement User‑friendly structure for quick replacement of cutting blade, high‑temperature belt and high‑temperature adhesive tape. Weekly simple dust‑cleaning keeps stable long‑term operation.
Wide Voltage Compatibility Default AC220V, 110V optional, 50/60Hz, fits different country power grids. Requires reliable grounding for safe operation.

Technical Specifications（Extracted from Official Operation Manual）

Item	Specification
모델	Heavy-duty Air Cushion Machine
Input Voltage	Default AC220V; AC110V adjustable, 50/60Hz
Rated Power	450W
Max Speed	28 m/min
Max Air Volume	700 L/min
Heat‑seal Temperature Range	90‑150 ℃
Machine Dimension(L×W×H)	400 × 165 × 310 mm
Package Dimension(L×W×H)	490 × 390 × 430 mm
Net Weight	18 KG
Gross Weight	20 KG
Shock‑proof Class	Class I anti‑electric shock
Certification	CE
Max Loading Weight of Film Roll	≤7 KG
Operating Ambient Temp	16‑43℃
Storage Ambient Temp	0‑43℃
최소 주문 수량	1 Set
Custom Service	Support power‑voltage option

Fault Code Reference (For After‑sales Troubleshooting)

Code	Fault Description	Handling Suggestion
ERR01	Temperature sensor abnormal	Restart machine; If alarm repeats, replace temperature sensor
ERR02	Heating strip over‑current	Check & replace damaged high‑temperature belt / heating strip
ERR03	Heating wire disconnected	Check heating strip and connecting wires; replace control panel if needed
ERR04	Motor over‑current	Check material jamming; replace motor if hardware damaged
ERR05	Material shortage / Fan over‑current / Fan failure	Contact authorized dealer or professional technician

Application Scenarios

Perfect for void‑fill and shock‑proof protection for electronics, glassware, cosmetics, handicrafts and daily‑use goods during transportation. Widely used for e‑commerce warehouses, retail shops, small factories and logistics distribution centers.

Notes & Reminders

Recommended to use our original gourd cushion film. Using third‑party film may cause bag breakage, poor sealing or machine damage, and will void relevant warranty service.
Do NOT operate without loading film roll. Keep fingers, hair and clothing away from rotating rollers to avoid entanglement injury. Heating roller runs at high temperature, watch out for scald.
Reliable grounding is mandatory for power supply. Do not use in humid environment.
Inflated air bags are only for packaging use. Do NOT use as flotation device, pillow or children’s toy.

Package Includes

1 × H035 Main Machine 1 × Power Cord Spare cutting blade, high‑temperature belt, high‑temperature adhesive tape 1 × Film shaft accessories 1 × English‑Chinese Operation Manual
