ETERNAPACK APM20 Air Bag Packaging Machine

Automatic Air Column Inflator for Efficient Protective Packaging

20 m/min Inflation Speed | 320 W Power | 110 V / 220 V Options | External Air Compressor Required

The ETERNAPACK APM20 Air Bag Packaging Machine is designed to inflate compatible air column rolls and inflatable air column bags for protective packaging applications. With an inflation speed of up to 20 Metern pro Minute, this machine helps packaging operations prepare inflatable cushioning materials on demand, improve packing productivity, and reduce the labor associated with manual inflation.

Suitable for manufacturers, packaging distributors, warehouses, E-Commerce Fulfillment-Zentren, und Logistikunternehmen, the APM20 supports compatible continuous air column rolls from 15 cm to 120 cm in width, along with specified U-shaped and L-shaped air column bags.

By combining automatic inflation with adjustable operating settings, the APM20 helps businesses establish a more consistent packaging workflow for fragile products, Elektronik, household goods, industrial components, and other items requiring cushioning during storage and transportation.

ETERNAPACK supplies protective packaging equipment and consumables for B2B customers seeking practical packaging solutions, reliable product information, and long-term supply cooperation.

Looking for an air column inflator for your packaging operation or distribution business? Contact ETERNAPACK for product details, film compatibility confirmation, and a quotation.

[Request a Quote] | [Ask for a Product Catalog] | [Discuss Distributor Cooperation]

1. What Is the ETERNAPACK APM20 Air Bag Packaging Machine?

The ETERNAPACK APM20 is an automatic air column inflation machine used to inflate compatible valve-equipped inflatable packaging materials. It is designed to support air column rolls and specified air column bags used to cushion products during packing, handling, and transportation.

Air column packaging contains interconnected or individually structured air chambers that help absorb and distribute external forces. When correctly selected and applied, these materials can help reduce direct contact between a product and its outer carton and limit unwanted movement during shipping.

The APM20 allows packaging teams to inflate compatible materials when needed instead of storing large volumes of pre-inflated packaging. This approach can simplify material storage and help maintain a flexible packing workflow.

The machine requires an external air compressor. Before ordering, buyers should confirm that their compressor can meet the machine’s air supply requirements and that their selected film is compatible with the machine.

2. Key Features and Benefits

Inflation Speed up to 20 m/min

With a rated maximum inflation speed of 20 Metern pro Minute, the APM20 is designed to support continuous air column packaging preparation. Actual output depends on the film design, inflation settings, operating conditions, and production workflow.

Adjustable Inflation Control

Adjustable air volume and operating settings help operators adapt the inflation process to compatible films and packaging applications. Correct adjustment is important for achieving appropriate cushioning without excessive inflation or unnecessary material stress.

Supports Air Column Rolls and Selected Air Column Bags

The APM20 is designed for compatible air column rolls and specified U-shaped and L-shaped air column bags. The supported material width is 15–120 cm for the applicable continuous air column packaging format. Please confirm the exact film structure and dimensions before purchase.

320 W Rated Power

The machine has a rated power of 320 W. Buyers should also consider the electrical requirements of the external air compressor when planning the total power supply for the packing station.

110 V / 220 V Power Options

The APM20 is available with 110 V or 220 V configurations, subject to the confirmed order specification. Please state your destination country and required voltage when requesting a quotation.

Compact Machine Footprint

With dimensions of 600 × 330 × 330 mm, the machine can be considered for suitable packing stations where an appropriately arranged workstation is available. Allow additional space for the external compressor, film rolls, product cartons, and operator access.

Automatic Inflation for More Consistent Packing

Compared with manual inflation methods, a dedicated inflation machine can help standardize the preparation of compatible inflatable packaging materials and reduce repetitive manual work.

Equipment and Consumables from One Supplier

ETERNAPACK can help B2B buyers evaluate the machine together with compatible air column films and bags. Coordinating equipment and consumables can simplify sourcing and support repeat orders.

3. Technical Specifications of APM20

Parameter	Spezifikation
Marke	ETERNAPACK
Modell	APM20
Produkttyp	Automatic Air Column Inflation Machine
Maximum Inflation Speed	20 m/min
Rated Power	320 W
Spannung	110 V / 220 V AC options
Machine Weight	Approx. 43 kg
Machine Dimensions	600 × 330 × 330 mm
Air Supply	External air compressor required
Compatible Materials	Compatible air column rolls, specified air column bags, U-shaped and L-shaped air column bags
Supported Film Width	15–120 cm for applicable continuous air column packaging
Typical Applications	Protective packaging, warehousing, Produktion, e-commerce and logistics

Specification note: The above figures follow the reference product’s published Q020 specifications, with the requested product name changed to APM20. Before publication or purchase, confirm the final machine nameplate, voltage configuration, air compressor requirements, supported film structures, and certification documents. Do not assume that a certificate issued under another model name automatically applies to APM20.

4. How Does the APM20 Work?

Step 1: Select Compatible Air Column Packaging

Choose the appropriate air column roll or specified inflatable bag based on product dimensions, weight, fragility, and the required packaging method.

Step 2: Prepare the External Air Compressor

Connect a suitable external air compressor according to the machine’s operating manual. Confirm that the compressor meets the required pressure and air delivery specifications before operation.

Step 3: Install the Film

Load the compatible film roll or prepare the specified air column bag. Ensure that the film structure, air valve, width, and feeding direction are suitable for the APM20.

Step 4: Adjust the Operating Settings

Set the appropriate inflation parameters according to the film specification and packaging requirements. Excessive or insufficient inflation may affect the performance of the finished cushioning material.

Step 5: Start the Inflation Process

Operate the machine according to the instructions and monitor film feeding and inflation. The maximum rated speed is up to 20 m/min under suitable conditions; actual production speed may vary.

Step 6: Pack and Secure the Product

Use the inflated air column material in a suitable carton or packaging arrangement. Position the cushioning material to limit unnecessary product movement and reduce direct impact.

Step 7: Verify the Packaging Result

For fragile, valuable, or high-risk products, perform trial packing and evaluate the complete packaging system. Where required, use appropriate distribution tests to assess performance during transport.

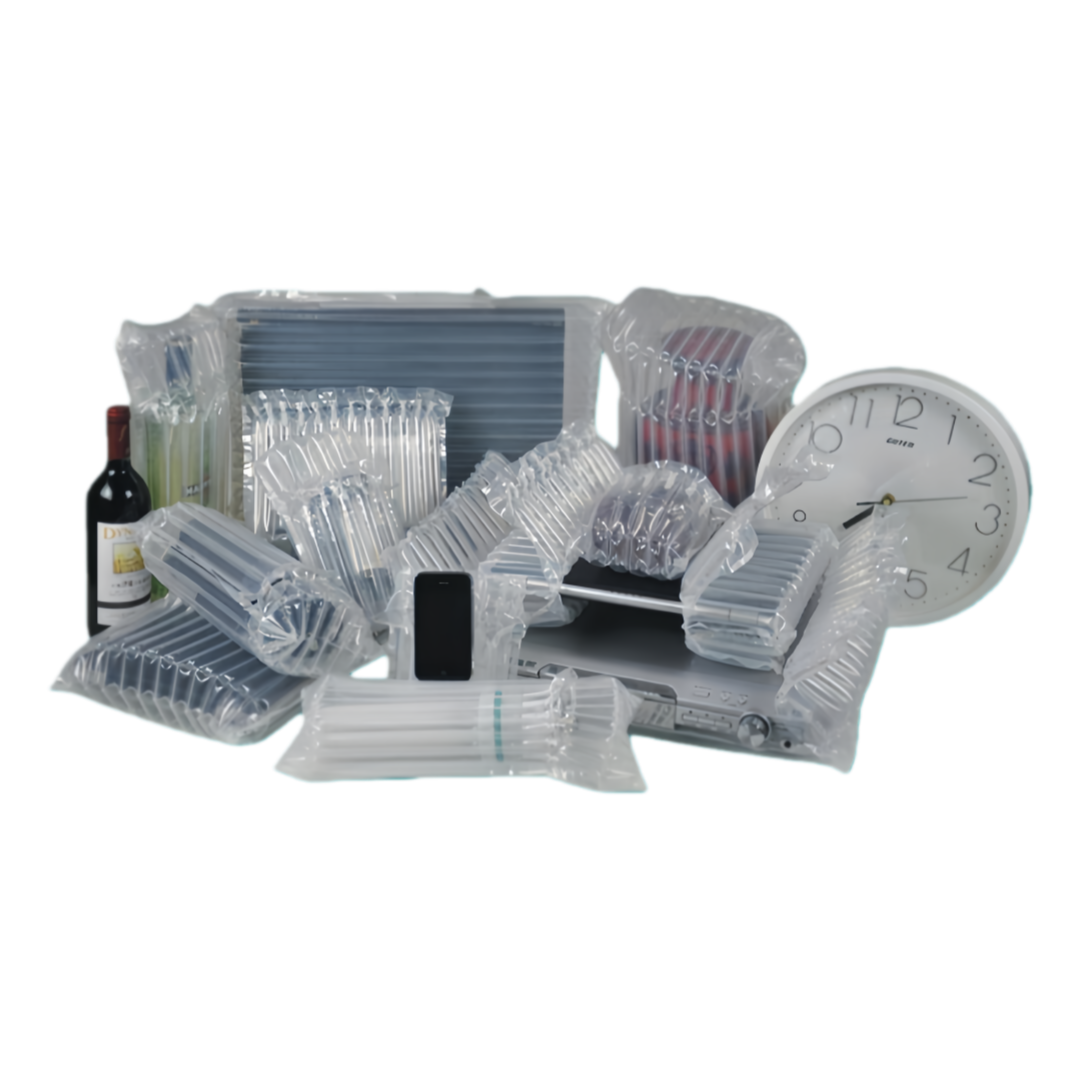

5. Compatible Air Column Packaging Materials

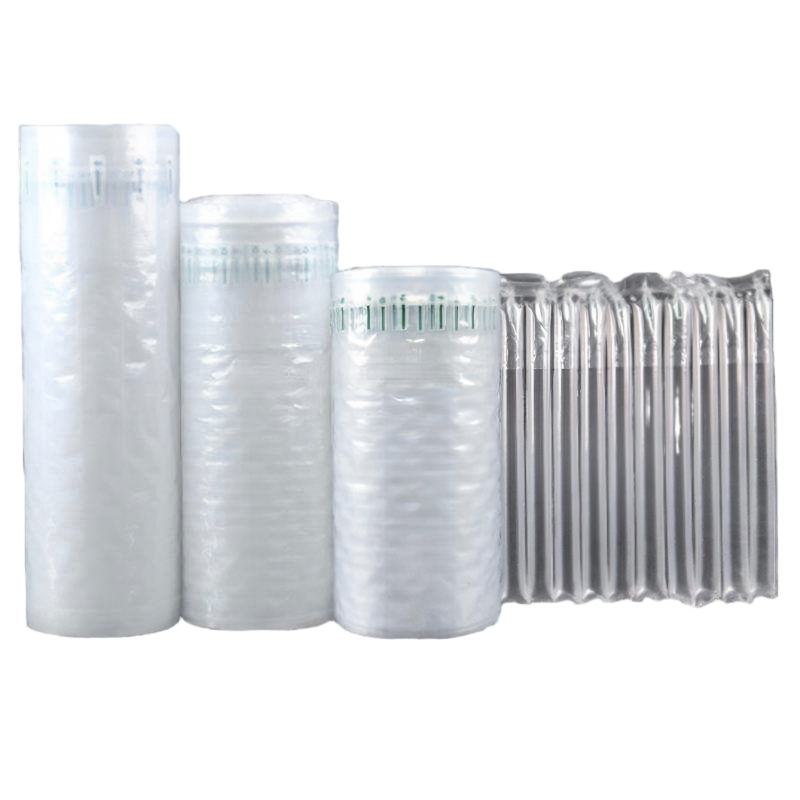

Air Column Rolls

Air column rolls consist of air chambers designed to provide cushioning around or alongside packaged products. The APM20 supports compatible continuous air column packaging in the specified width range.

U-Shaped Air Column Bags

U-shaped air column bags are designed to cushion products along multiple sides. Their suitability depends on the product dimensions, bag design, and required level of protection.

L-Shaped Air Column Bags

L-shaped air column bags can support corner and edge protection for selected products. Choose the bag structure according to the dimensions and shape of the item being packed.

Air Column Packaging for Different Product Sizes

The reference machine listing specifies continuous air column packaging widths from 15 cm to 120 cm. Actual compatibility must be confirmed against the film design and machine feeding requirements.

Important: Not all air pillow films, heat-seal bubble films, or valve-free inflatable films are compatible with an air column inflator. Please provide the film specifications or a sample photo so that the appropriate machine and material combination can be confirmed.

6. Applications Across Multiple Industries

E-commerce and Fulfillment Centers

Prepare compatible inflatable cushioning materials for orders containing household goods, accessories, packaged consumer products, and other items requiring shipping protection.

Electronics and Electrical Components

Use suitable air column packaging to cushion selected electronic devices, accessories, and components during handling and transportation.

Glass, Ceramics, and Fragile Products

Combine compatible inflatable cushioning with an appropriate outer carton and internal packaging arrangement to help reduce product movement and absorb impacts.

Industrial Parts and Hardware

Select suitable air column bags or rolls for packaging certain metal parts, tools, spare parts, and industrial components according to their weight and geometry.

Cosmetics and Consumer Goods

Use an appropriate inflatable packaging format to cushion selected packaged products during storage, order preparation, and distribution.

Warehousing and Logistics

Integrate the APM20 into an appropriately designed packing station to prepare inflatable packaging materials according to shipment demand.

Packaging performance depends on the complete packaging system, including product weight, fragility, carton strength, cushioning placement, handling conditions, and distribution routes. Testing is recommended for sensitive or high-value products.

7. Why Choose ETERNAPACK?

Protective Packaging Equipment and Materials

ETERNAPACK focuses on protective packaging equipment and consumables, helping B2B customers evaluate equipment and compatible materials together.

Factory-Direct B2B Cooperation

We support business customers seeking equipment supply, repeat consumable purchases, and long-term cooperation. Quotations and commercial terms depend on configuration, quantity, and destination.

Distributor and Wholesale Opportunities

We welcome inquiries from packaging distributors, wholesalers, and regional partners interested in developing inflatable protective packaging solutions in their markets.

OEM/ODM and Project-Based Customization

Where available for the selected product, customization can be evaluated according to project requirements. Please confirm the scope and feasibility of each requested option before placing an order.

Application-Based Recommendations

Our recommendations take into account the product being packed, required output, film dimensions, power supply, external compressor availability, and operating environment.

Ongoing Product Communication

We aim to support customers with product information, film compatibility checks, quotation preparation, and follow-up communication about equipment and consumables.

8. How to Choose the Right Air Column Inflation Machine

Before purchasing the APM20, consider the following:

• Product dimensions and weight: What are the length, width, height, and approximate weight of your products?
• Film type: Do you need continuous air column rolls, U-shaped bags, or L-shaped bags?
• Film specifications: What are the film width, thickness, material structure, and valve design?
• Packaging volume: How many cartons or products do you pack per shift or per day?
• Power supply: Do you require 110 V or 220 V?
• Air compressor: Do you already have a suitable compressor, or do you need help confirming the required specifications?
• Working environment: Will the machine be used in a warehouse, a dedicated packing station, or a production area?
• Purchase purpose: Are you buying for your own operation, resale, wholesale distribution, or system integration?

Providing this information helps us confirm whether the APM20 is suitable for your application and identify compatible packaging materials.

9. Häufig gestellte Fragen

F1: What is the maximum inflation speed of the APM20?

The published reference specification lists a maximum inflation speed of 20 Metern pro Minute. Actual output depends on the film structure, operating settings, compressor performance, and working conditions.

F2: Does the APM20 require an external air compressor?

Ja. The reference product specifies an external air compressor. Confirm the required compressor pressure and air delivery with the machine supplier before purchase.

Q3: What film width can the APM20 support?

The reference listing specifies 15–120 cm continuous air column packaging. Compatibility with a particular roll or bag should be confirmed before ordering.

Q4: Can the APM20 inflate U-shaped and L-shaped air column bags?

The reference listing identifies compatible U-shaped and L-shaped air column bags. Confirm the exact bag structure and dimensions with the supplier.

Q5: Is the APM20 suitable for all inflatable packaging films?

Nein. Air column films with compatible valves and feeding structures are required. Heat-seal air pillow films or other valve-free films may require a different machine design.

Q6: Can I order the machine for 110 V or 220 V?

The reference specification lists both 110 V and 220 V options. Please confirm the required configuration and destination country before placing an order.

Q7: Can distributors purchase the APM20 for resale?

ETERNAPACK welcomes inquiries from distributors and wholesalers. Please provide your target market, estimated demand, and required packaging materials so that suitable products and cooperation terms can be discussed.

Q8: How can I confirm whether the machine will work with my film?

Send us the film specification, dimensions, valve structure, product link, or sample photos. Compatibility should be confirmed before purchasing the machine and placing a large order for consumables.

10. Packaging Industry Resources

For independent guidance on packaging design and distribution testing, consult:

• International Safe Transit Association (ISTA): https://www.ista.org/test_procedures.php
  Learn about distribution packaging test procedures and evaluation methods.
• ISTA Packaging Design Guidance: https://www.ista.org/getting_started_with_design.php
  Review general guidance for developing and evaluating distribution packaging.
• International Organization for Standardization (ISO): https://www.iso.org/standard/64889.html
  Explore ISO/IEC Guide 41:2018, which addresses packaging considerations relating to product protection, handling, transportation, and resource optimization.

These references provide general industry guidance. They do not establish certification or guaranteed packaging performance for the ETERNAPACK APM20. Any certification claim must be supported by valid documents applicable to the exact machine model.

11. Request a Quote for the ETERNAPACK APM20

Find the Right Air Column Packaging Solution for Your Business

Are you looking for an automatic air column inflator for your warehouse, manufacturing operation, packaging distribution business, or logistics service?

Contact ETERNAPACK to confirm the APM20 configuration, external compressor requirements, and compatibility with your packaging materials.

To help us provide an appropriate recommendation, please share:

1. Product name, dimensions, and approximate weight.
2. Preferred air column roll or bag type.
3. Film width, thickness, and valve specifications, if available.
4. Estimated daily or monthly packaging volume.
5. Required voltage and destination country.
6. Your company type: end user, distributor, wholesaler, or system integrator.

ETERNAPACK — Practical Protective Packaging Solutions for Global B2B Customers.

Contact our team today to request product details, film compatibility confirmation, and a quotation for your packaging project.
